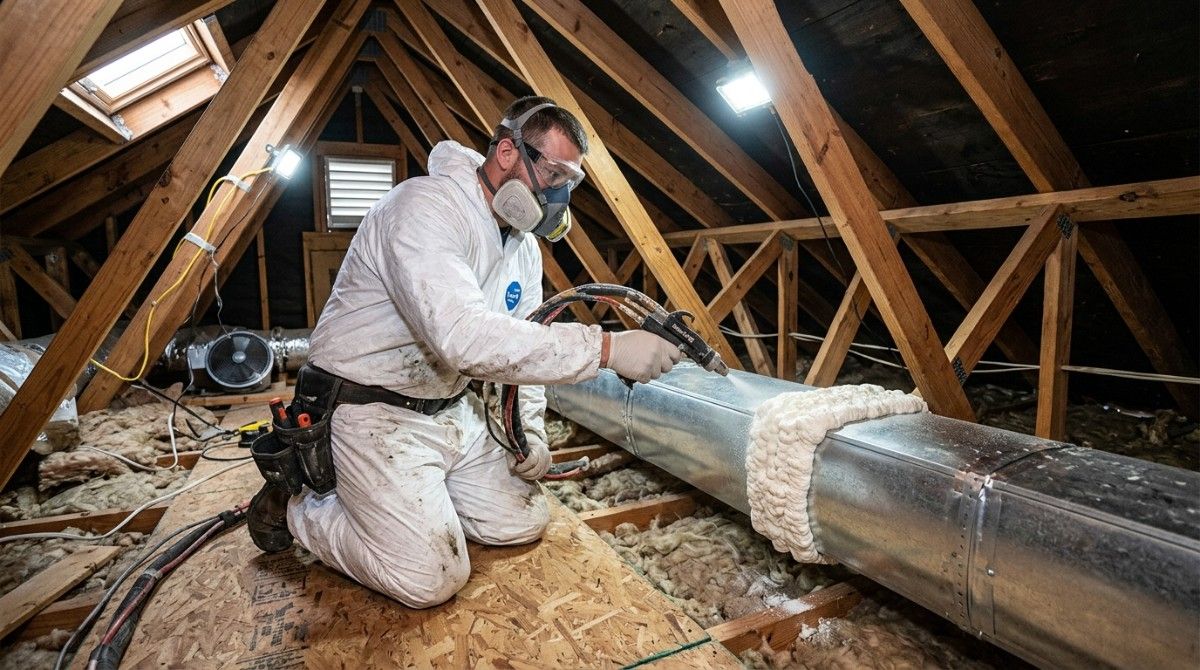

How to Apply Spray Foam Insulation to HVAC Ductwork

HVAC ducts running through a hot attic, cold crawl space, or garage can gain or lose heat before conditioned air reaches your rooms. Metal ducts may also “sweat” when their cold surface meets warm, humid air.

Ignoring these problems can mean uncomfortable rooms, longer HVAC run times, and moisture around the duct system. Simply spraying foam over dirty, leaking, or damaged ducts is not the answer. Poor preparation can trap problems instead of fixing them.

The better approach is simple: inspect and seal the ductwork first, then insulate the exterior with the right spray foam. This guide explains how to spray foam HVAC ductwork safely, where it works best, and when another solution makes more sense.

Can You Spray Foam HVAC Ductwork?

Yes. Closed-cell spray polyurethane foam can be applied to the exterior of properly prepared HVAC ducts in suitable applications. It can add thermal resistance and create a continuous layer around ducts located in unconditioned spaces.

Do not spray foam inside supply or return ducts. Foam should also never replace proper mechanical duct connections or approved duct sealants. ENERGY STAR recommends sealing accessible leaks with mastic or metal-backed foil tape before insulating the duct system.

For attic and crawl-space projects, closed-cell spray foam options are usually more suitable than open-cell foam because closed-cell foam offers greater moisture resistance and higher insulation value per inch.

Which Spray Foam Is Best for HVAC Ductwork?

Closed-cell foam is generally the practical choice when moisture and condensation are concerns. Open-cell foam is softer and more vapor-permeable, making it less suited to many exposed duct applications.

When comparing broader spray foam insulation choices, match the product to the duct location, climate, required R-value, manufacturer instructions, and local building code.

Before Spraying Foam on HVAC Ducts

Good preparation matters more than spraying quickly. The duct system should be mechanically sound, dry, clean, properly supported, and sealed before foam is added.

DOE guidance also recommends testing duct leakage and repairing problems before encapsulating attic ducts. A duct-blaster test can identify leakage that is difficult to find by sight alone.

How to Spray Foam HVAC Ductwork Step by Step

1. Inspect the Entire Duct Run

Look for disconnected joints, loose fittings, crushed flex duct, torn jackets, rust, water damage, and unsupported sections.

Repair these problems before insulation begins. Spray foam can cover defects and make later HVAC repairs harder.

2. Seal Duct Leaks First

Use HVAC mastic or approved metal-backed foil tape on accessible seams and connections. Ordinary cloth “duct tape” is not a reliable long-term duct-sealing material.

A good duct seal keeps conditioned air inside. Spray foam can then focus on insulating the outside surface rather than acting as a substitute for proper repairs.

3. Shut Down the HVAC System

Turn the HVAC equipment off before spraying. Protect registers, returns, and openings so airborne spray foam particles and vapors cannot move through the duct system.

EPA guidance recommends shutting down and sealing HVAC openings during spray polyurethane foam work to limit contaminant movement to other areas.

4. Clean and Dry the Duct Surface

Remove dust, dirt, grease, loose insulation, and other material that could interfere with adhesion.

Follow the foam manufacturer's required surface and chemical temperatures. Do not spray onto wet ductwork or attempt to cover an active condensation or roof-leak problem.

5. Protect Equipment and Service Areas

Cover nearby equipment that should not receive foam. Keep access panels, controls, dampers, electrical components, labels, drains, and other service points accessible.

Never spray across furnace vents, flues, combustion-air openings, or hot components unless the exact assembly and product are approved for that application.

For difficult or high-risk systems, professional spray foam installation may be more appropriate than a DIY application.

6. Apply Closed-Cell Foam Evenly

Spray the exterior in controlled passes following the foam manufacturer's maximum lift thickness and application instructions.

Avoid one heavy application. Consistent coverage reduces thin spots and helps the foam cure correctly.

7. Cover the Full Duct Surface

Condensation control requires more than coating the easy-to-reach top and sides. The underside matters too.

DOE research found that exposed areas beneath encapsulated ducts can remain vulnerable to condensation when the duct jacket falls below the surrounding air's dew point.

For certain buried or encapsulated attic-duct assemblies, PNNL guidance uses at least 1.5 inches of closed-cell foam around ducts already insulated to the specified level. The required thickness for your project can differ, so follow the approved assembly and local code.

Why Full Encapsulation Matters for Condensation

Condensation forms when a duct surface becomes colder than the dew point of the surrounding humid air. A continuous insulation layer helps keep the outer surface warmer and separates the cold duct from humid attic or crawl-space air.

This is why foam condensation control depends on continuous coverage. Leaving exposed strips or gaps can create cold spots where moisture may still collect.

Do You Need to Spray Over Existing Duct Insulation?

Not always. Existing insulation that is dry, intact, properly installed, and code compliant may remain part of an encapsulated duct assembly.

DOE/PNNL details include metal, flex, and fiberboard ducts that are first properly insulated, sealed, and then completely encapsulated with closed-cell spray foam. Damaged, wet, crushed, or poorly installed duct material should be corrected first.

Spray the Ducts or Insulate the Attic?

Direct duct encapsulation is not always the best project.

If ducts are difficult to reach from all sides, creating a complete foam layer can be challenging. Moving ducts into conditioned space or converting the attic into a properly designed conditioned area may sometimes address the larger problem more effectively.

Safety and Code Checks You Should Not Skip

Two-part spray foam produces vapors and aerosols during installation. Use the protective equipment, ventilation method, temperature range, and re-entry time required by the product's safety data and installation instructions.

EPA recommends isolating spray areas, controlling ventilation, keeping unprotected occupants away, and following manufacturer guidance before re-occupancy. The site's spray foam air-quality guidance provides additional context.

Duct applications can also have fire and smoke requirements. The 2024 International Mechanical Code includes specific conditions for polyurethane foam spray-applied to duct exteriors in attics and crawl spaces, including flame-spread, smoke-development, temperature, and foam-plastic requirements.

Check whether your product and assembly meet required standards, including applicable ASTM E84/UL 723 and ASTM C411 provisions. Local codes can differ, so product approval for general insulation does not automatically mean approval for every HVAC application.

DIY Spray Foam or Professional Installation?

A small, accessible duct project may be manageable for someone familiar with two-part foam equipment, ventilation, PPE, and surface preparation.

For appropriate projects, DIY spray foam kits provide measured two-component systems. Calculate the required coverage before buying so you have enough material to create an even layer without stopping midway.

Larger attic systems, hard-to-reach ducts, combustion equipment, moisture problems, or uncertain code requirements are better handled by experienced installers.

When closed-cell foam is appropriate, closed-cell foam kits let you compare available coverage sizes and choose a kit suited to the planned area and thickness.

Common Mistakes When Spray Foaming Ductwork

The most common problems usually happen before or during application:

• Spraying over leaking or disconnected joints

• Leaving the underside of ducts exposed

• Applying foam to dirty or wet surfaces

• Covering access panels or HVAC controls

• Ignoring product temperature requirements

• Skipping ventilation and required PPE

Many of these issues match broader common spray foam mistakes that can reduce adhesion, coverage, safety, and insulation performance.

FAQs About Spray Foaming HVAC Ductwork

Can I Spray Foam Directly on Metal HVAC Ducts?

Closed-cell spray foam can be used on suitable exterior duct applications when the surface is properly prepared and the product is approved for the assembly. Seal duct joints first and follow local code and manufacturer instructions.

Will Spray Foam Stop HVAC Ducts From Sweating?

A continuous layer of suitable closed-cell foam can reduce condensation risk by insulating the cold duct surface from warm, humid surrounding air. Gaps and thin spots can still allow condensation to occur.

How Thick Should Spray Foam Be on Ductwork?

There is no single thickness for every project. DOE/PNNL guidance for certain attic encapsulation assemblies specifies at least 1.5 inches of closed-cell foam over properly insulated ducts. Product specifications, required R-value, climate, and local code should determine your final thickness.

Can You Spray Foam Over Flexible HVAC Ducts?

Certain approved encapsulated systems can include flex duct, but the flex duct should first be properly supported, sealed, insulated, and free from crushing, tears, sharp bends, or excessive sagging.

Should Duct Leaks Be Sealed Before Spray Foam?

Yes. Seal accessible joints and leaks with HVAC mastic or approved foil tape before applying insulation. Spray foam should not be used to hide loose connections or replace proper duct repairs.
